The use of high-manganese steel or super-high manganese steel jaw plate as base material, in their work place composite inlaid carbide, the bi-metal composite wear parts wear surface has excellent wear resistance, non-wear surface with excellent plasticity And impact toughness. Installed by the user to use, consistent reflect the good results.

Product Detail

Product Tags


Jaw crusher is mainly used for medium particle size crushing of various ores and large materials. It is widely used in mining, smelting, construction,highway,railway, water conservancy, chemical industry and other industries. The maximum crushing material strength is 320MPa. Jaw crusher parts can also be called vulnerable parts of jaw crusher, which is an important part of jaw crusher; We can provide wear-resistant parts for various types of jaw crushers, such as jaw plate (moving plate, fixed plate), toggle plate, liner, etc. we can also manufacture products of different materials according to the drawings provided by customers.

jaw plate modeling area



Genuine Alternative Spare Parts - Jaw Plates Made by SHANVIM®

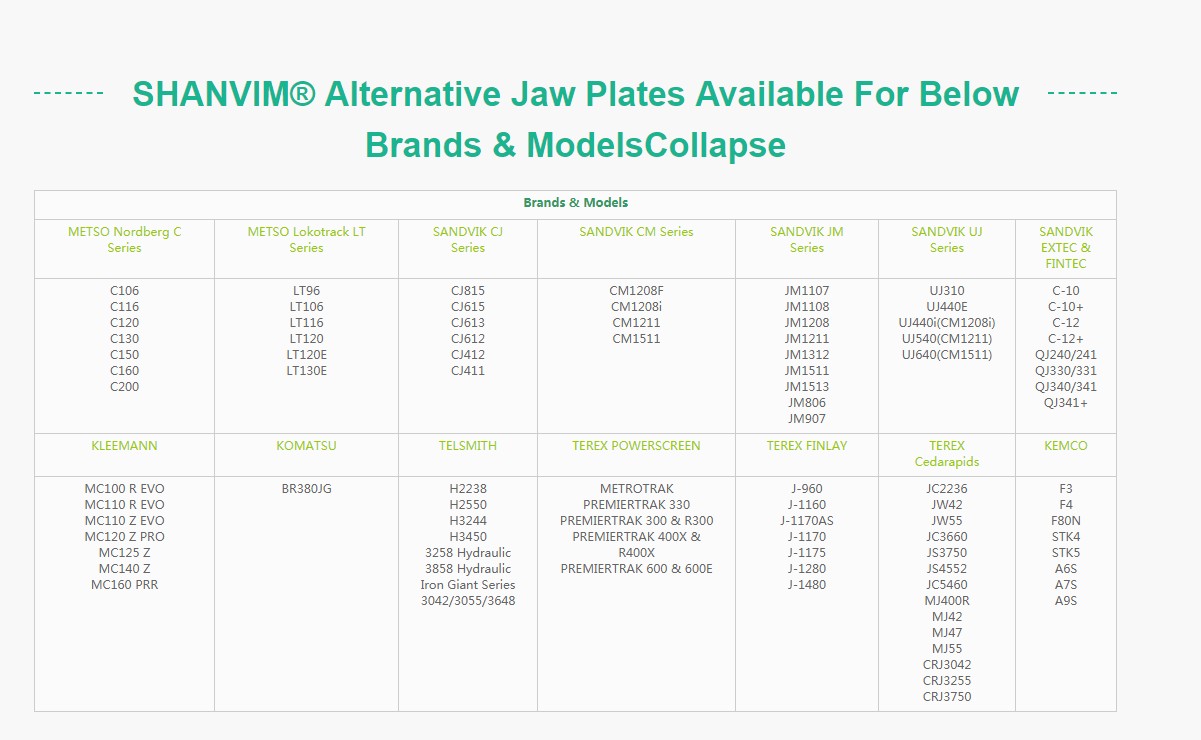

SHANVIM® manufactures, stocks and supplies "Genuine Alternative" jaw plates of a fully extensive range of OEM jaw crushers including but not limited to: Metso®, Sandvik®, Extec®, Telsmith®, Terex®, Powerscreen®, Kleemann®, Komatso®, Kemco®, Finlay® and Fintec®.

Notice: The following table does not include all the OEM interchangeable jaw plates that we can produce. If you need accessories from other brands, or know the OEM serial number of the jaw plate that you are looking to replace, or can provide the drawing of the jaw plates that you need to customize, please feel free to contact us by email or call.



Both stationary and movable jaw die could be flat surfaced or corrugated. In general, jaw plates are made of high manganese steel which is the dominant wear material. High manganese steel is also known as Hadfield manganese steel, a steel whose manganese content is very high and which possesses austenitic properties. Such plates are not only extremely tough but are also quite ductile and work-harden with use.

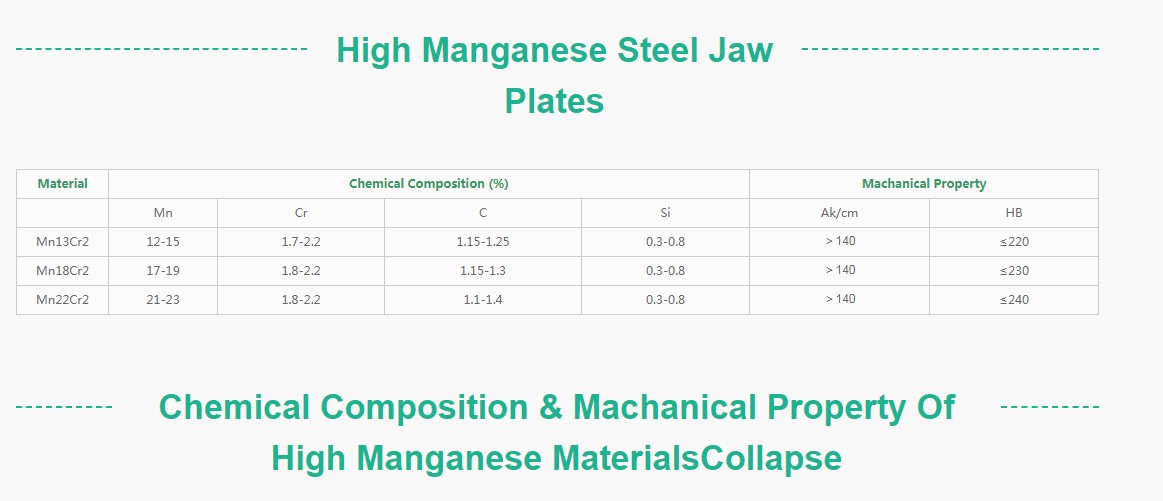

We offer jaw plates in 13%, 18% and 22% grades of manganese with chromium ranging from 2%-3%. Check below table of our high manganese jaw die properties:
