Shanvim produces high wear-resistant liners, which are new wear-resistant products developed by absorbing domestic and foreign advanced technology, among which high chromium alloy liners are a new generation of crusher liners developed by combining with the specific industrial and mining conditions of domestic sand and gravel industry. The liner adopts new manufacturing technology, unique structural design, the finished product is cubic, no tension and cracks, the particle shape is quite good, can be crushed into the feed size of up to 500mm, the compressive strength of up to 350MPa of various coarse, medium and fine materials (granite, limestone, concrete, etc.), is widely used in a variety of ore crushing, railroads, highways, energy, cement, chemical industry, construction and other industries. The high wear-resistant liner plate castings we produce are trusted by major manufacturers.
Detailed introduction

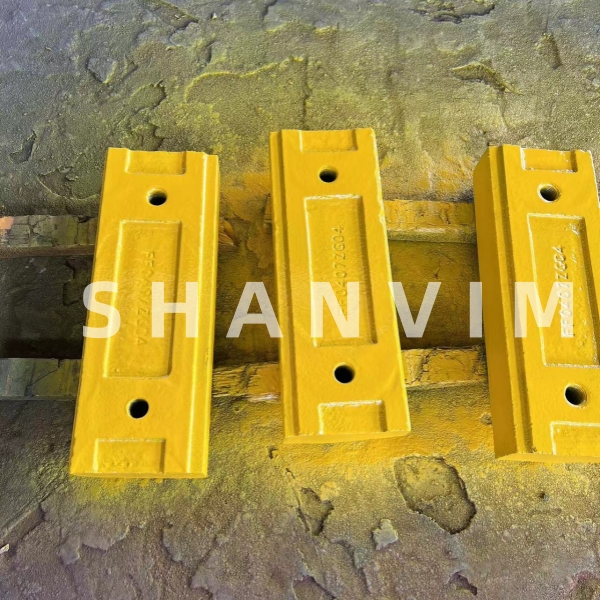

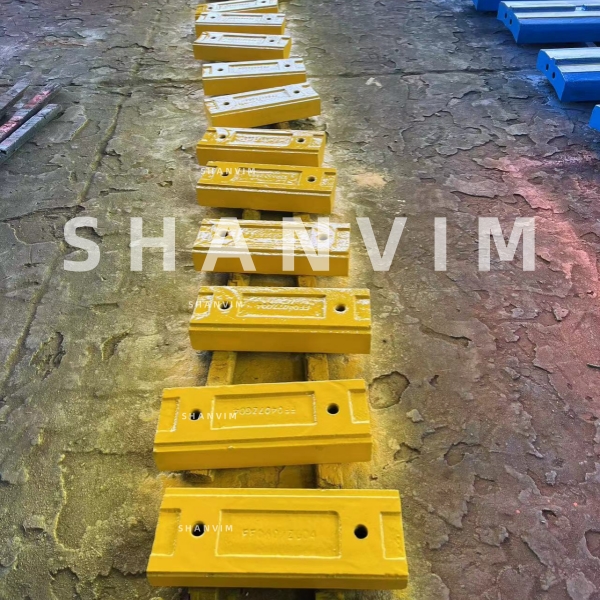

Product Name: Liner plate, high wear-resistant liner plate
Common alias: liner plate, bulkhead, grate plate, castor, sieve plate, sieve bar
Main material: Mn13, Mn13Cr2
Casting technology: Lost foam casting
Applicable materials: granite, basalt, etc.
Application scope: smelting, building materials, highway, railroad, water conservancy and chemical industry, etc.
High manganese steel is divided into 5 grades according to the national standard, the main difference is the carbon content, the range is 0.75%-1.45%. High impact, low carbon content. The commonly used grades of high manganese steel and their application range are: ZGMn13-1 (C 1.10%-1.50%) for low impact parts, ZGMn13-2 (C1.00%-1.40%) for common parts, ZGMn13-3 (C0.90%-1.30%) for 1.30%) is used for complex parts, and ZGMn13-4 (C0.90%~1.20%) is used for high impact parts. The manganese content of the above four grades of steel is 11.0% to 14.0%. Manganese content between 11.0% and 14.0% should not be less than 13% in general. There is no national standard for ultra-high manganese steel, but the manganese content should be greater than 18%. The level of silicon content, chromium is to improve wear resistance, generally around 2.0%. Commonly used to make excavator shovel teeth, cone crusher mantle and bowl liner, jaw crusher jaw plate, ball mill liner, blow bar, hammer and so on.
Shanvim as a global supplier of crusher wearing parts, we manufacture cone crusher wearing parts for different brands of crushers. We have more than 20 years of history in the field of CRUSHER WEAR PARTS. Since 2010, we have exported to America, Europe, Africa and other countries in the world.
Post time: Mar-13-2024
