In response to the customer’s desire to improve hammer production and service life, SHANVIM recommended three solutions proposed, according to the customer’s actual mine conditions have been adopted program and feedback achieved good results in use.
1. Hard alloy is welded on the surface of high manganese steel hammer
Our company’s hard alloy welding technology has been widely used in hammer、rotors and other products. This technology can effectively extend the service life of accessories and increase the output of equipment.
China Hammer Casting Factory
2.Adjustments were made to the raw materials of high manganese steel
Originally, Mn13 was replaced with Mn18. If it is replaced with Mn18, the output should be increased by about 20%-30%.

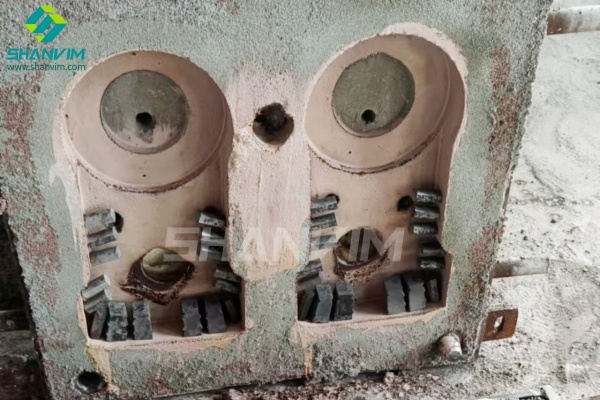

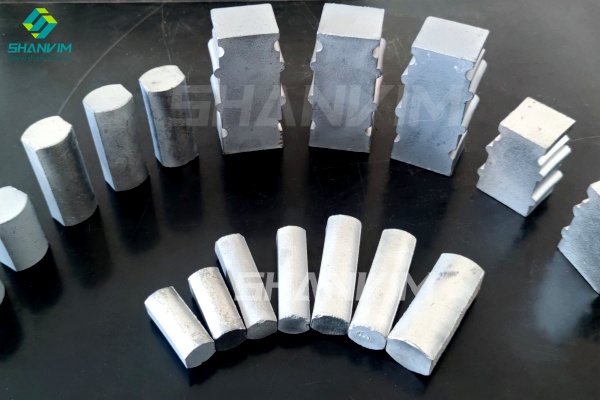

3. Embed Titanium Alloy bars（TiC） inside the working part of high manganese steel hammer

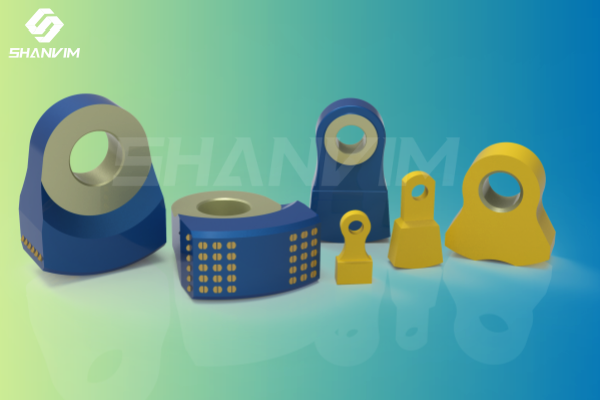

Hammer: ZGMn18Cr2 Insert Alloy Bars & Hardfacing
The hammer with alloy bars embedded has a service life of more than 1-1.2 times that of the hammer without alloy bars embedded.
According to the customer’s expected product requirements and the subsequent technical support of our technical department, the more alloy bars are embedded, the more the wear resistance of the hammer will be improved.
When the high manganese material bear large impact force from Stone, its surface hardening quickly and forms the wear resistance surface layer. The insert hard alloy rod had good performance anti-friction ,hardness & toughness. After embedding alloy bars inside high manganese steel Hammer, Its service life can be increased by 1-1.2 times.
From this section , you can see the blace point is the ally bars ,they conbination with bese material for 100%,don’t worry for falling or pulling out during using.
SHANVIM adopts imported high manganese steel ZGMn13Cr2 material, according to the customer’s specific requirements can also provide customized services, all to improve the user’s machine spare parts part of the wear resistance and experience.
The quality of the raw material and casting process will directly affect the actual wear resistance of the product, we also have a professional technical team to support the pre-sale and after-sale technical services, choose SHANVIM can bring you better product benefits and protection.
Zhejiang Jinhua Shanvim Industry and Trade Co., Ltd., established in 1991. The company is a wear-resistant parts casting enterprise，Crusher wear parts casting factory. The main products are the wear-resistant parts such as mantle, bowl liner, jaw plate, hammer, blow bar, ball mill liner, etc.. There are medium and high , Ultra-high manganese steel, medium carbon alloy steel , low, medium and high chromium cast iron materials, etc.. It mainly produces and supplies wear-resistant castings for mining, cement, building materials, infrastructure construction, electric power, sands and gravel aggregates, machinery manufacturing and other industries.
Post time: Dec-13-2024
