Jaw Crusher Toggle plate is a cast iron part through accurate accounting. It is not only a force transmitting member, but also an insurance part of the jaw crusher. When the crusher falls into materials that cannot be crushed and the machine exceeds its usual load, the Toggle plate breaks immediately and the crusher stops working, preventing the whole machine from being damaged.

Definition

Through accurate calculation, the cast iron part is not only the force transmitting member, but also the insurance part of the jaw crusher.

Function

Transmission of power, safety function, adjustment of discharge opening size.

Toggle plate and Toggle plate seating adopts rolling contact method, under normal use condition, there is little friction, only need to apply a layer of grease on the contact surface. The whole part is a mechanism for adjusting the size of discharge opening and compensating the wear between Jaw plate, Toggle plate and Toggle plate seating.

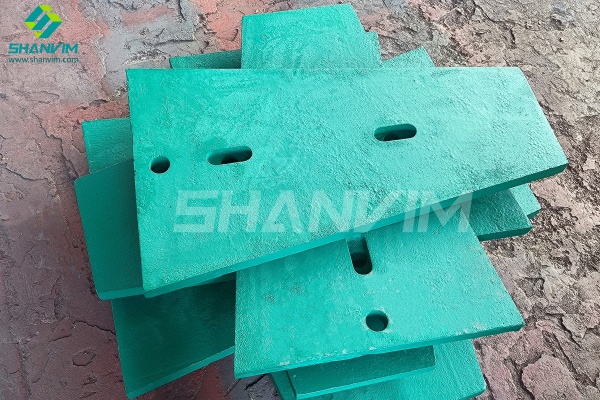

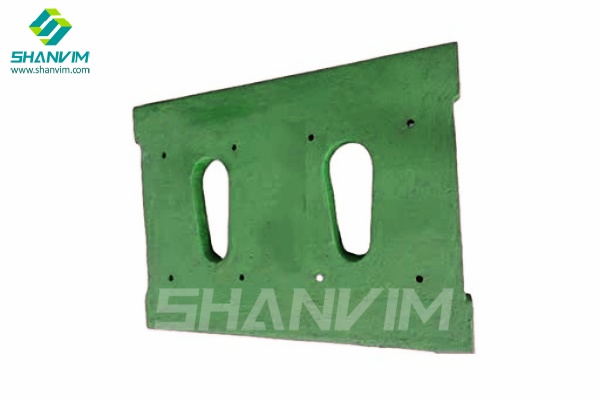

Toggle plate, toggle seat, for PE series Jaw C rushers

Jaw crusher Toggle plate is both an insurance part and a wearing part, which is easily damaged. When the Toggle plate is worn and broken, it should be replaced immediately, so how to replace the Toggle plate after it is worn?

Jaw crusher Toggle plate installation steps:

First           The installation of Jaw Crusher Toggle plate is firstly to loosen the tie rod spring nut, and then take down the spring.

Secondly   Use the chain and wire line to bolt on the lower part of Swing Jaw Plate.

Thirdly      Use the professional installation tool Lever block, pull the wire line, make the Swing Jaw Plate close to the Fixed Jaw Plate, then the Toggle plate will fall down automatically.

Fourthly    After the worn out old Toggle plate is removed, then pull the new Toggle plate into the elbow plate seat with the wire line.

Fifth            The Lever block is then loosened so that the Toggle plate and Toggle plate seating are in close contact.

Finally        Install the lever and spring at this time the Toggle plate is supported in the Toggle plate seating, then the Lever block can be removed.

China Toggle Plates Factory, Toggle Plates Supplier

The above are the installation steps of Toggle plate of jaw crusher, correct installation can reduce the normal work of crushing equipment due to improper installation in the future work, which can also save the time of jaw crusher downtime maintenance.
