Gold Ore Mining

Gold ore is one of the most popular ores, and there are three modes of development of gold mines, namely: gold mines, gold refining enterprises and jewelry enterprises.

Gold ore can be roughly divided into alluvial gold ore and rock gold ore, according to the conditions of the gold mine, the nature of the original ore is different, mining enterprises in the gold mining process there are some differences.

SHANVIM specializes in providing high quality crusher wear parts and is a solution expert in the crushing field.

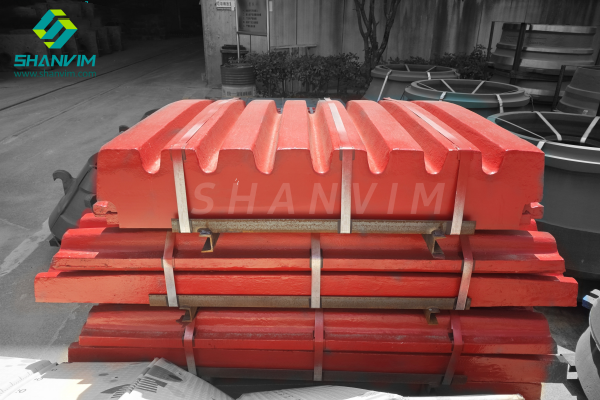

 jaw plate

Gold ore material processing technology flow stage:

Stage 1:magnetic separation process flow

Magnetic separation process production line consists of jaw crusher, ball mill, classifier, magnetic separator, thickener and dryer and other main equipment, with the feeder, elevator, belt conveyor can be composed of a complete mineral processing production line. The production line has the advantages of low energy, high processing capacity and reasonable economy. According to the actual situation of the customer can design supporting equipment



Stage 2: flotation process

This production line has the advantages of low energy, high processing capacity and reasonable economy.

First of all, the ore mined from the quarry is sent to the raw ore bin cache of the processing plant. The raw ore is fed into the Jaw crusher through the feeder for rough crushing, and the crushing gold ore Jaw Plate plays a vital role, the raw ore is broken down through the interaction of Jaw Plate, and the rough crushed products are sent to the screening plant by Belt conveyor.

Screening operation utilizes two layers of Screen mesh to divide the coarse crushed products into three kinds of products according to the particle size, the screened products are fed into the Jaw Crusher to be crushed again, the crushed products and the intermediate granularity materials of the Screening machine are gathered in the belt conveyor and sent to the crushing workshop for crushing by the Cone Crusher(ZGMn13Cr2,ZGMn18Cr2,ZGMn22Cr2), the crushed products are returned to the belt conveyor, and returned to the screening workshop together with the coarse crushed products. The screened products are transported to the powder ore bin by the belt conveyor.

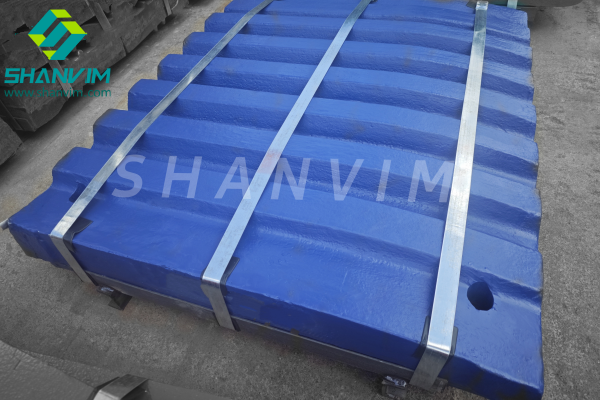

 jaw plate2

In this gold mining process, the grinding operation adopts one-end closed-circuit grinding process composed of hydrocyclone and ball mill. The hydrocyclone overflow enters the mixing tank to add flotation chemicals, and enters the flotation machine after mixing and blending. The bottom flotation stream is transported to the tailings storage through slurry pumps, while the flotation froth products are thickened and filtered to obtain the final gold concentrate.

SHANVIM as a global supplier of crusher wearing parts, we manufacture crusher wearing parts for different brands of crushers. We have more than 20 We have more than 20 years of history in the field of CRUSHER WEAR PARTS. Since 2010, we have exported to America, Europe, Africa and other countries in the world.
