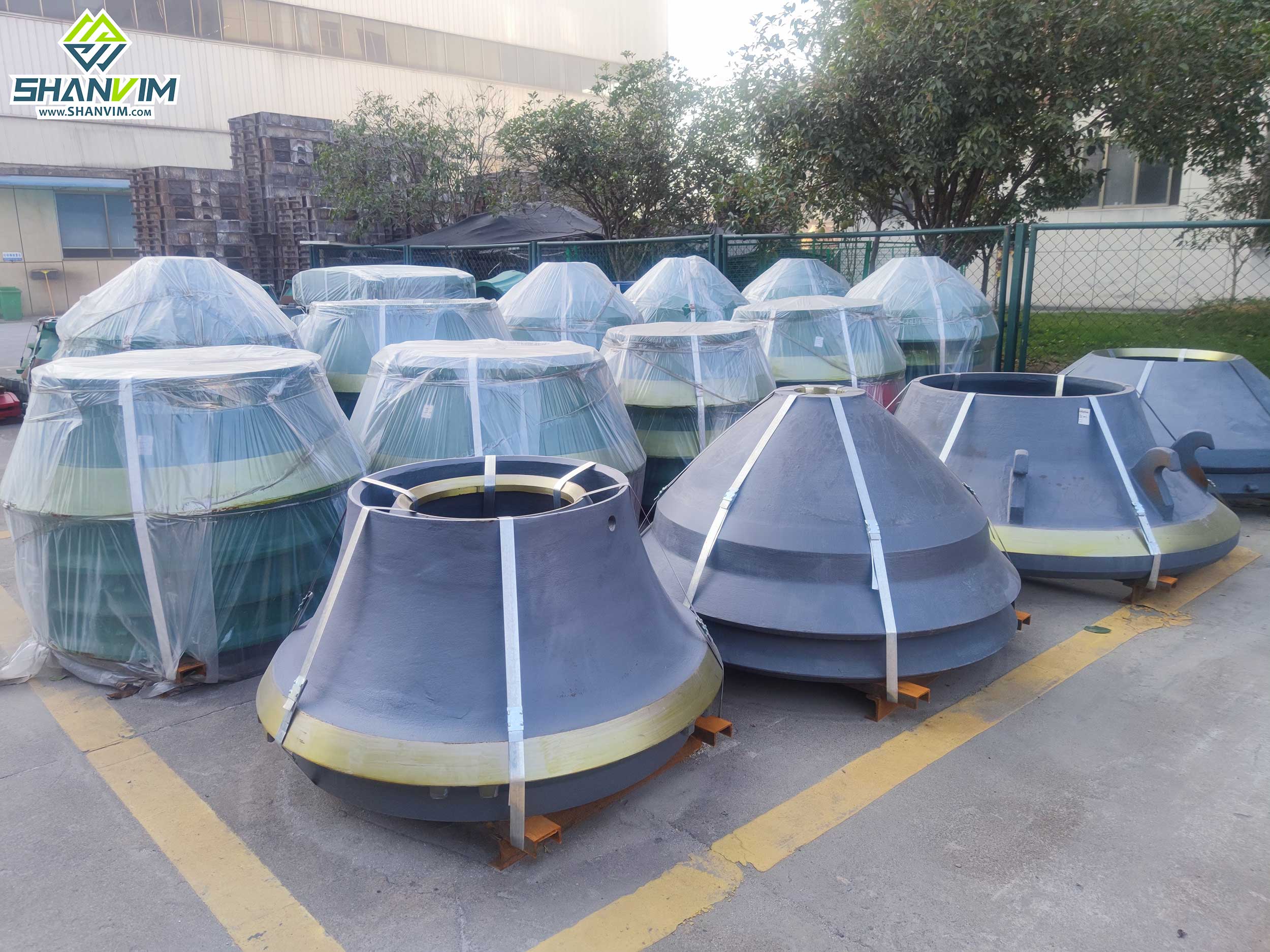

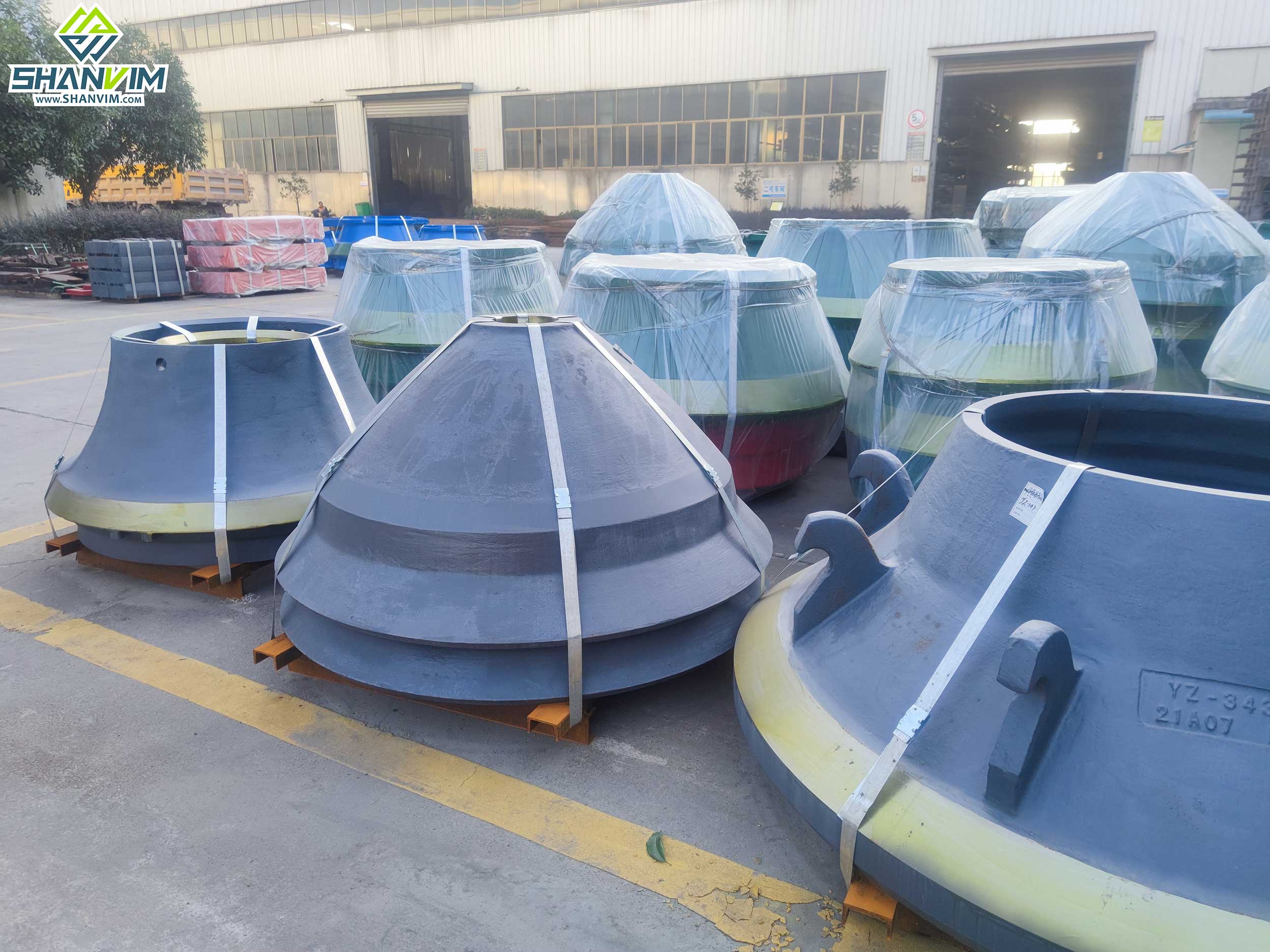

Mantle and bowl liner are the main parts that work together in the cone crusher to crush materials. The difference between Mantle and bowl liner is as follows:
Mantle, one of the main components of a cone crusher, also known as the moving cone, is fixed on the cone body with a cone head. It is forged with new composite materials, featuring wear resistance, high performance cost ratio and wide range of applications. The cone head and the cone body are cast with phenolic epoxy resin between them to form the Mantle. The newly installed or replaced Mantle should be inspected for fastening state after 6 to 8 hours of work, and should be tightened immediately if it is found to be loose.
Bowl liner, another main part of a cone crusher, works together with mantle to crush materials. It is also called fixed cone because it is fixed. When a cone crusheris in operation, the mantle will make a trajectory movement, and the distance between the mantle and the rolling mortar wall is sometimes close and sometimes far away, so as to squeeze crushed materials, and at this time, part of crushed materials will be discharged from the open-edge discharge port. The Bowl liner are fixed on the adjusting ring with U-shaped screws, and zinc alloy is injected between the two to make them closely combined. The newly installed or replaced Bowl liner should be inspected for fastening state after 6 to 8 hours of work, and U-shaped screws should be tightened again.
The above is the difference between mantle and bowl liner.
ShanvimI hope it can help you.
