The working environment of the impact crusher is harsh, the wearing parts are severely worn, and various faults often occur. Understanding the precautions for the protection and maintenance of the key components of the counterattack crusher and giving full play to the functions and advantages of the equipment is of great significance to improving the impact crusher performance and production efficiency. This article shares the primary factors affecting the service life of the impact breaker, impact plate and rotor, as well as precautions in installation and protection.

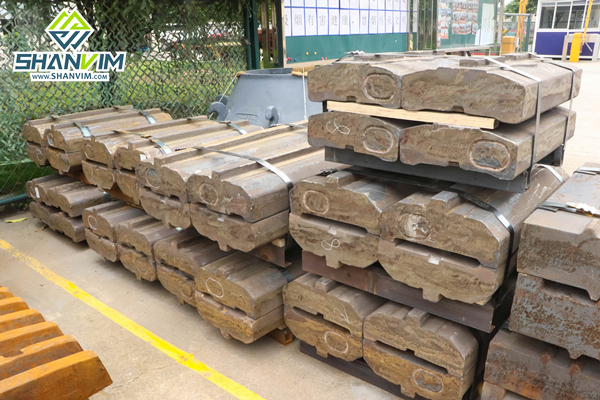

Factors affecting the service life of the blow bar. The blow hammer of the impact crusher reverses at a high speed with the rotor, impacts the crushed material, impacts and grinds with the material, so it is extremely easy to wear. The factors that affect the service life of the blow bar are: the raw material of the blow bar, the quality of production, the properties of the material to be crushed, the peripheral speed of the rotor, the structure of the blow bar, the processing capacity, etc.
1. Raw materials of blow bars at present, our country mainly uses wear-resistant materials such as high manganese steel and chromium alloy steel to make blow bars. Because the heat treatment process level of the manufacturer is different, its mechanical function is very different, and the life of the blow bar is also very different.
2. In addition to the impact of the plate hammer raw material on the life of the rotor, the following reasons also affect the life of the blow bar of some crushers: because the rotor of the impact crusher has a high linear speed, there are 3-6 pieces on the rotor. , up to 8-10 blow bars.
The time distance between the front and rear bow bars turning is only a few tenths of a second. In such a short period of time, only a few materials can enter the impact area as a whole, and most materials, especially large materials, only need one end to enter the impact area, so the blow bar does not hit the center of gravity of the material block, that is, the blow bar does not hit the center of gravity of the material block. The frontal impact with the entire material block is broken, but the oblique collision is carried out.
In this way, not only the crushing effect is reduced, but also a sliding conflict occurs between the material and the blow bar, which then causes the blow bar to wear out very quickly. In addition, after the powder sticks to the impact plate, the conflict between the blow bar and the powder material becomes more severe, and the blow bar wears more quickly.
In order to reduce the wear of the blow bars, the number of blow bars on the rotor should not be too much, the diameter of the rotor should not be too small, the height of the blow bars should be appropriately increased, and the powder, soil and moisture that the character guessed should be pre-screened as much as possible. .
3. The structure and fixing method of the blow bar The structure of the blow bar and its fixing method also affect its life. Now, for the impact crusher made in my country, 80% of the blow bars are fixed with countersunk screws. This fixing method has the advantages of simple structure, convenient disassembly and assembly, and the rotor does not need to be hoisted out of the body during replacement. To overcome this defect, the blow bar is fixed more securely, but the rear groove of the blow bar needs to be machined. Some crushers have blow bars that pierce the rotor grooves from the side.
The wedge fixed piercing method has a slope of 1:5 on both sides of the fixed, and is fastened by the centrifugal force generated during the operation of the wrench. Both ends of the blow bars of this structure should be pressed with pressure plates to prevent movement. This method of fixing is not very reliable, it is not safe during operation, and the blow bar is likely to fly out, so it is best not to use it.
There is also a kind of use of wedge iron to fix the blow bar, it is put into the groove of the rotor, and the wedge iron with slope on both sides is driven into the wedge hammer from the side of the rotor. After the blow bar is pre-tightened, the blow bar, wedge iron and rotor will turn tighter and tighter under the effect of centrifugal force during operation, and the operation is reliable, but it is difficult to disassemble and assemble, and it is rarely used now.
4. The production quality of the blow bar the accuracy of the weight of the blow bar must be strictly guaranteed during the production process. The weight difference should not exceed 0.5kg. After the blow bar is installed on the rotor, a static balance test is required. When the rotor is required to stop rolling, it is not allowed to retreat 1/10 of the circle in any direction.
