There are many reasons why your impact crusher blow bars are breaking on a regular basis.We have complied a list of the most common causes of blow bar failure and the solutions to those problems.
1.BLOW BAR NOT SEATING AGAINST ROTOR
Possible Causes
1) The rotor is not straight or needs to be rebuilt.
2) Blow bar is not straight,defective,or not properly machined to specs.
3) Blow bar could be pivoting,rocking on the locking mechanism,or there may be a fitting issue.
2.WORN AND CRACKED ROTOR
This customer experienced multiple breakages at the point where the rotor was worn and had a crack.This rotor needs to be replaced or rebuilt.
If a replacement or rebuild is not practical,moving to Manganese blow bars will help.

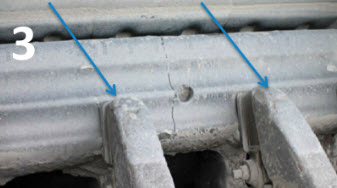

3.LOOSE WEDGES
Problem:
The customer was experiencing breakage.When we went to the site,we found that the wedges were loose,causing the bar to move up in the rotor station,causing pressure on the locating nose.This pressure lead to a break in a blow bar.A new person was in charge of the crusher and did not realize they could loosen.
Solution:
A program was initiated to check wedge tightness a few hours after new blow bars were installed and at other intervals.
4.LACK OF BLOW BAR SUPPORT
Are the wedges tightened properly?What is the condition of the wedges?
Are they bring checked periodically for tightness,especially after initial installation?

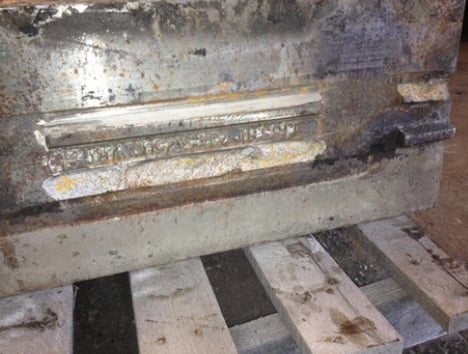

Image1&2
Here is an example of wedges not being used properly;user was forcing old nuts/bolts under wedges to push them up instead of jacking bolts/set screws.These wedges need to be replaced with new ones!
Another example of breakage due to the insufficient support of the blow bar.Notice how the wedge&rotor is worn down,so it only contacts the bar properly at the bottom.
