PITMAN-THE MAIN MOVING PART IN JAW CRUSHER

Short Description:

The pitman is the main moving part in a jaw crusher, which forms the moving side of the jaw.
A jaw crusher pitman has two supporting points for supporting it in the body of the jaw crusher, the upper supporting parts of the pitman consists of flywheel and eccentric shaft. And the lower supporting parts consists of toggle plate, toggle seat and tension rod.
The pitman achieves its movement through the rotation of the eccentric shaft, so that the jaw plate fixed on it can crush the materials, just like the lower jaw chewing food.

Send email to us

Product Detail

Product Tags

Description

The pitman is the main moving part in a jaw crusher, which forms the moving side of the jaw.

A jaw crusher pitman has two supporting points for supporting it in the body of the jaw crusher, the upper supporting parts of the pitman consists of flywheel and eccentric shaft. And the lower supporting parts consists of toggle plate, toggle seat and tension rod.

The pitman achieves its movement through the rotation of the eccentric shaft, so that the jaw plate fixed on it can crush the materials, just like the lower jaw chewing food.

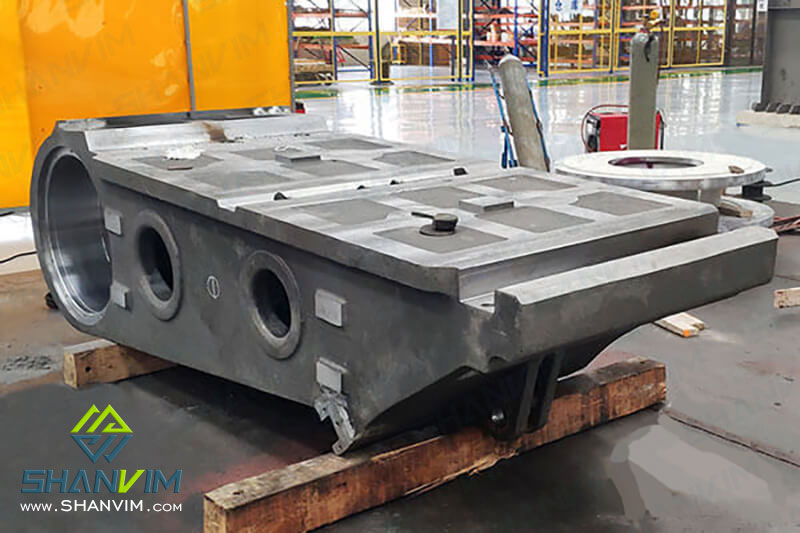

Genuine Alternative Spare Parts - Jaw Crusher Pitman Made by SHANVIM®

SHANVIM® manufactures stocks and supplies "Genuine Alternative" jaw crusher parts of an extensive range of OEM including but not limited to: Metso®, Sandvik®, Extec®, Telsmith®, Terex®, Powerscreen®, Kleemann®, Komatso®, Kemco®, Finlay® and Fintec®.

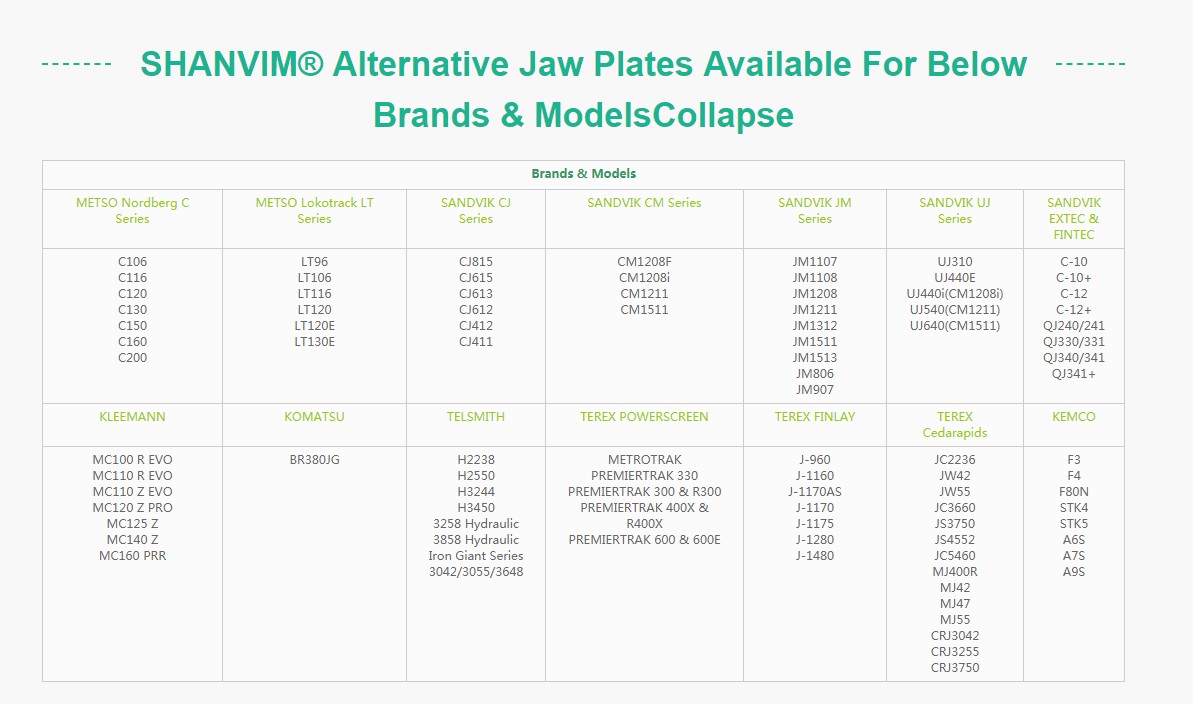

Notice: The following table does not include all the OEM interchangeable jaw plates that we can produce. If you need accessories from other brands, or know the OEM serial number of the jaw plate that you are looking to replace, or can provide the drawing of the jaw plates that you need to customize, please feel free to contact us by email or call.
